Display two images per row on mobile version, for E-commerce: Search  en

Autore: Wakhid Khusaini
Visite 88, Followers 1, Condiviso 0

Hello, I would like the mobile version to have two images in one row for E-commerce Search, please can anyone help?

The step 3-Map, Shopping Cart: Search, Layout and Cards per row are available and for Desktop view it doesn't matter but for Mobile view it shows up as only one row of image.

Postato il
10 RISPOSTE
Esahc ..
Esahc ..
Moderator

Wakhid, you can often overcome the defaults in WX5 by adding an extra resolution of 320px. You should achieve 2 columns on most mobile devices.

Leggi di più
Postato il da Esahc ..
Wakhid Khusaini
Wakhid Khusaini
User
Autore

Please guide me how to do that. I have added en extra resolution for 320px but it show also one image one row.

I need in Search e-Commerce shows two images in each row.

I try to search the discussion, found for product list on the product object, not for Search ecomm (cartsearch) "How to Display two items per row in mobile view", https://helpcenter.websitex5.com/it/post/270845

Leggi di più
Postato il da Wakhid Khusaini
Daniel W.
Daniel W.
User
Utente del mese DEUtente del mese EN

It won't work with 320 px; the search bar would have to be placed above the products somehow.

Perhaps the experts have a solution using CSS or JavaScript.

-----

Leggi di più
Postato il da Daniel W.
Daniel W.
Daniel W.
User
Utente del mese DEUtente del mese EN

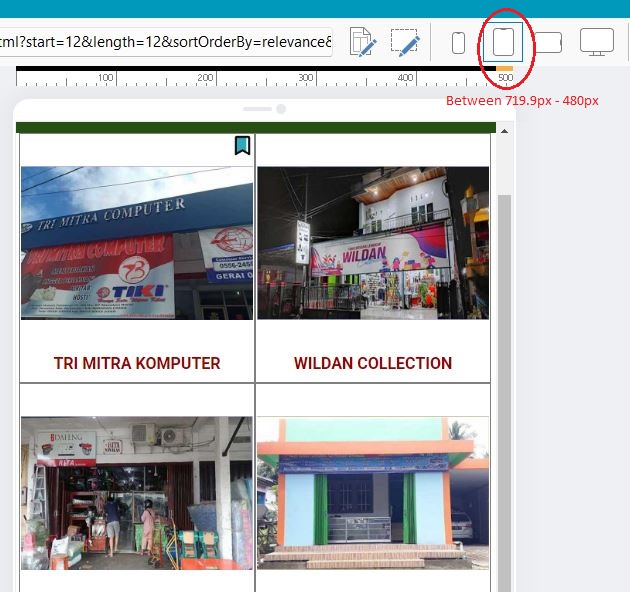

I did some tests with CSS code, see screenshot below

From 480 px and wider, two products are displayed side by side; see the CSS code used below.

Instruction:

In WebSite X5, select "3 Sitemap" and "Online Shop: Search" under the special pages and click "Properties" at the top. Then click "Advanced" and insert the CSS code here:

     Custom code:
     Before the closing </HEAD> tag

After exporting, you may want to use the keyboard shortcut Ctrl + F5 in the browser to request the latest files from the web server.

----- CSS code -----

<style>
@media (max-width: 719.9px) and (min-width: 480px) {
#im-cartsearch-container {
padding-inline-start: 3px;
padding-inline-end: 5px;
}
.filter-sidebar { display: none; }
}
</style>

----- Screenshot -----

Leggi di più
Postato il da Daniel W.
Daniel W.
Daniel W.
User
Utente del mese DEUtente del mese EN

For anyone who wants to follow my instructions, here are my settings:

A) On WebSite X5 under...

     2 Template > Responsive Design

     ... I added "320px".

B) On WebSite X5 under ...

     3 Sitemap

     ... select "Online Shop: Search" at the bottom of the special page,

     ... click "Edit" at the top, and in the "Settings" tab, set the number of fields per row to "2".

The number "3" can result in very narrow product views at larger widths.

Leggi di più
Postato il da Daniel W.
Daniel W.
Daniel W.
User
Utente del mese DEUtente del mese EN

Unfortunately, I don't have a smartphone to test it on. I'm testing it in Firefox's smartphone simulation.

At first, only one product was displayed per row, but then I scrolled a bit, and then there were two products per row, see screenshot.

Perhaps some users will come along and test it on their smartphones.

-----

Leggi di più
Postato il da Daniel W.
Daniel W.
Daniel W.
User
Utente del mese DEUtente del mese EN

I added another resolution of 400px and the corresponding CSS code for it, so it should work even at 400px and above, but it doesn't work in the Firefox simulation, even though there's enough space next to it, see screenshot.

Perhaps the CSS experts can suggest a solution if it doesn't work on a real smartphone either.

My demo shop for testing >> https://findelinks.de/123shop-hosteurope/cartsearch/index.html

-----

Leggi di più
Postato il da Daniel W.
Wakhid Khusaini
Wakhid Khusaini
User
Autore

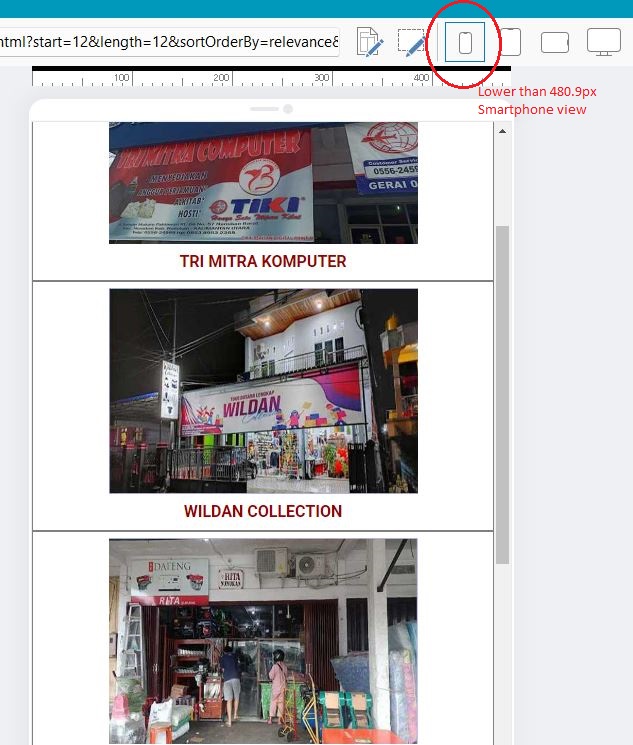

Still the same, Viewport 2

This is smartphone view

Leggi di più
Postato il da Wakhid Khusaini
Wakhid Khusaini
Wakhid Khusaini
User
Autore

I check again the code I entered, the procedure is right and the position Before the closing </HEAD> tag

Leggi di più
Postato il da Wakhid Khusaini
