Display two images per row on mobile version, for E-commerce: Search  en

Author: Wakhid Khusaini
Visited 261, Followers 2, Shared 0

Hello, I would like the mobile version to have two images in one row for E-commerce Search, please can anyone help?

The step 3-Map, Shopping Cart: Search, Layout and Cards per row are available and for Desktop view it doesn't matter but for Mobile view it shows up as only one row of image.

Posted on the
12 ANSWERS - 1 USEFUL - 1 CORRECT
Esahc ..
Esahc ..
Moderator

Wakhid, you can often overcome the defaults in WX5 by adding an extra resolution of 320px. You should achieve 2 columns on most mobile devices.

Read more
Posted on the from Esahc ..
Wakhid Khusaini
Wakhid Khusaini
User
Author

Please guide me how to do that. I have added en extra resolution for 320px but it show also one image one row.

I need in Search e-Commerce shows two images in each row.

I try to search the discussion, found for product list on the product object, not for Search ecomm (cartsearch) "How to Display two items per row in mobile view", https://helpcenter.websitex5.com/en/post/270845

Read more
Posted on the from Wakhid Khusaini
Daniel W.
Daniel W.
User
Best User of the month DEBest User of the month EN

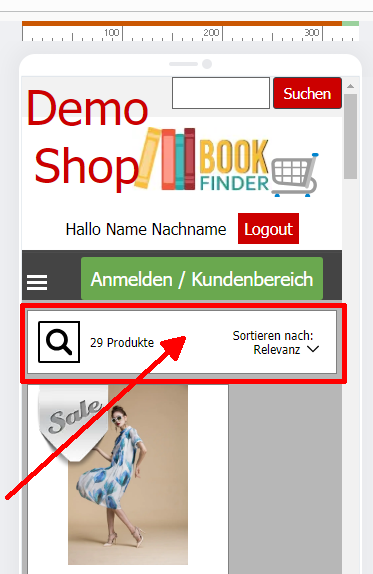

It won't work with 320 px; the search bar would have to be placed above the products somehow.

Perhaps the experts have a solution using CSS or JavaScript.

-----

Read more
Posted on the from Daniel W.
Daniel W.
Daniel W.
User
Best User of the month DEBest User of the month EN

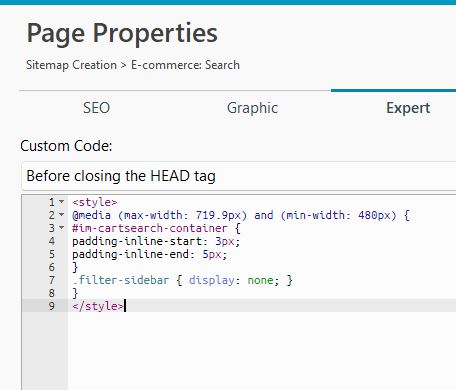

I did some tests with CSS code, see screenshot below

From 480 px and wider, two products are displayed side by side; see the CSS code used below.

Instruction:

In WebSite X5, select "3 Sitemap" and "Online Shop: Search" under the special pages and click "Properties" at the top. Then click "Advanced" and insert the CSS code here:

     Custom code:
     Before the closing </HEAD> tag

After exporting, you may want to use the keyboard shortcut Ctrl + F5 in the browser to request the latest files from the web server.

----- CSS code -----

<style>
@media (max-width: 719.9px) and (min-width: 480px) {
#im-cartsearch-container {
padding-inline-start: 3px;
padding-inline-end: 5px;
}
.filter-sidebar { display: none; }
}
</style>

----- Screenshot -----

Read more
Posted on the from Daniel W.
Daniel W.
Daniel W.
User
Best User of the month DEBest User of the month EN

For anyone who wants to follow my instructions, here are my settings:

A) On WebSite X5 under...

     2 Template > Responsive Design

     ... I added "320px".

B) On WebSite X5 under ...

     3 Sitemap

     ... select "Online Shop: Search" at the bottom of the special page,

     ... click "Edit" at the top, and in the "Settings" tab, set the number of fields per row to "2".

The number "3" can result in very narrow product views at larger widths.

Read more
Posted on the from Daniel W.
Daniel W.
Daniel W.
User
Best User of the month DEBest User of the month EN

Unfortunately, I don't have a smartphone to test it on. I'm testing it in Firefox's smartphone simulation.

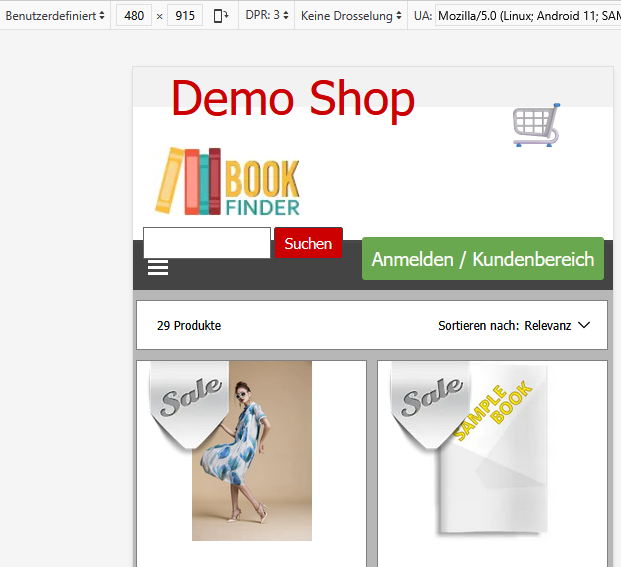

At first, only one product was displayed per row, but then I scrolled a bit, and then there were two products per row, see screenshot.

Perhaps some users will come along and test it on their smartphones.

-----

Read more
Posted on the from Daniel W.
Daniel W.
Daniel W.
User
Best User of the month DEBest User of the month EN

I added another resolution of 400px and the corresponding CSS code for it, so it should work even at 400px and above, but it doesn't work in the Firefox simulation, even though there's enough space next to it, see screenshot.

Perhaps the CSS experts can suggest a solution if it doesn't work on a real smartphone either.

My demo shop for testing >> https://findelinks.de/123shop-hosteurope/cartsearch/index.html

-----

Read more
Posted on the from Daniel W.
Wakhid Khusaini
Wakhid Khusaini
User
Author

Still the same, Viewport 2

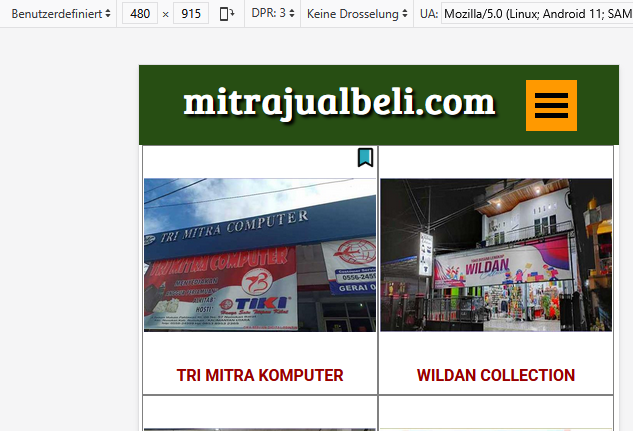

This is smartphone view

Read more
Posted on the from Wakhid Khusaini
Wakhid Khusaini
Wakhid Khusaini
User
Author

I check again the code I entered, the procedure is right and the position Before the closing </HEAD> tag

Read more
Posted on the from Wakhid Khusaini
Daniel W.
Daniel W.
User
Best User of the month DEBest User of the month EN

When simulating in Chrome at 480px, only one product is initially displayed per row, but when the F5 key is pressed, two products are displayed in one row. The simulation behaves exactly the same in Firefox, see screenshot.

Something seems to be missing to trigger two products to appear in a row. Perhaps JavaScript could help, but I don't have the expertise.

----- Browser Chrome -----

Read more
Posted on the from Daniel W.
Wakhid Khusaini
Wakhid Khusaini
User
Author

Never mind, Thank you for your help
